Plasma Storage Cabinet ProfiLine Pegasus PLPE 4145EWN-P

  • Static cooling and manual defrost
  • Microprocessor driven temperature controller with digital display
  • Visual/audible alarm device
    - mains-independent
    - Alarm warning for excess and insufficient temperature
    - Door alarm
    - No-volt remote alarm contact for connection to a remote alarm system
    - RS-485 port
  • Lockable door, door hinges on right, can only be changed in factory
  • External housing made of white, galvanized steel plate
  • Interior made of stainless steel (CNS)
  • 5 drawers with telescopic slide-out
  • 4 castors, 2 lockable

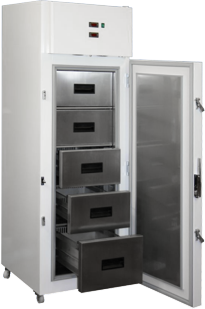

Fig.r.: ProfiLine Pegasus PLPE 4145EWN-P

Model ProfiLine Pegasus   PLPE4145EWN-P
Temperature range °C : -20/-45
Content litres : 413
Ext. dimensions (W×D×H) mm : 720 × 880 × 2090
Int. dimensions of the 4 upper drawers (W×D×H) mm : 355 × 530 × 205
Int. dimensions of the lowest drawer (W×D×H) mm : 355 × 530 × 260
Depth with door opened mm : 1475
Weight kg : 223
Mains connection  : 1/N/PE~230 V 50 Hz
Shipping dimensions (W×D×H) mm : 870 × 975 × 2250
Shipping weight kg : 255
Refrigerant CFC- and HCFC-free   : R507

Telescopic drawers made of stainless steel



ProfiLine Pegasus + Accessories Cat. No.
ProfiLine Pegasus PLPE4145EWN-P GSPLPE4145EWN-P
ProfiTec temperature monitoring and recording system GPTEC4A
ProfiCaller telephone dialler on request
Pt100 temperature sensor, additional installed ZXX2-020-2L
for external temperature recording
MIN/MAX thermometer to be placed in refrigerators or freezers, ZXX2-019-001
measuring range -50/+50 °C, no add. temperature sensor required
MIN/MAX digital thermometer, hand-held unit with digital display ZXX2-019-011
as well as data-hold and relative measuring function,
measuring range -200/+1370 °C
(An additional temperature sensor is required, eg. Cat. No. ZXX2-022-100.)
Temperature sensor for MIN/MAX thermometer ZXX2-019-011, ZXX2-022-100
measuring range -100/+1000 °C, length 2 m, other ranges on request
 Temperature Monitoring
ProfiTec
intelligent temperature monitoring and recording system
• For up to 4 refrigerators
   and/or freezers
• Readings are stored over
   a period up to 781 days
• Warning for excess and
   insufficient temperature
• Includes no-volt remote
   alarm contact
• The measuring protocol
   can be fed to PC via
   RS-232 port

Download Data sheet

PDF

 Blutplasma Shock Freezer Model Labcool Genius LCGE 21

Labcool Genius LCGE 21

For 21 EU standard plasma bags 500 ml
 Capacity, Temperature, Freezing Time
Freezing capacity: 21 EU standard plasma bags  (500ml)
 : 12 EU - industry plasma bags (1000ml)
Operating temperature: -50°C
Max. deep-freeze and storage temperature: till -50 °C
Freezing time: -30 °C / approx. 30 min. with 500 ml bags
 : -30 °C / approx. 60 min. with 1000 ml bags
Defrost cycle with integrated defrost heating: approx. 30 min.
  • The horizontal freezing technique with high-performance contact plates provides plasmas frozen to the core in uniformly shaped bags.
  • 21 EU standard plasma bags of 500 ml are frozen to a core temperature of -30 °C in less than 30 minutes.
  • Contact cover plate with pneumatically controlled operating device, which adjusts precisely to the size and shape of the bag for the batch to be frozen.
  • Contact operating plate and contact cover plate are supplied and regulated by seperate refrigeration systems.
  • Ergonomic design enables quick loading and removal.
  • Sveral batches of plasma can be shock-frozen consecutively without the need for an interim defrosting operation

⇒ www.plasmafreezer.de
