Path : Laboratory Upright Freezers / LabStar Sirius LSSI 50..

⇐ prev.: LabStar Sirius

⇑ Overview: Laboratory Upright Freezers

LabStar Sirius: next ⇒

Laboratory Upright Freezer LabStar Sirius LSSI 50..

Forced air circulation with automatic defrost and condensate evaporation or
Static cooling and manual defrost
Cooling unit top
Operating panel with main switch
- Electronic control with digital display
- Visual/audible alarm device
- Alarm warning for excess and insufficient temperature
- Door alarm
- No-volt remote alarm contact for connection to a remote alarm system
- RS-485 port
Self-closing and lockable door
Door hinges on right, changeable
Door seal changeable
3 adjustable grid inserts in tilt-resistant guide rails
Interior made of stainless steel (CNS)
4 castors, 2 lockable

Fig.r.: LabStar Sirius LSSI 5030EWU. (With accessories Inventory Systems.)

Model LabStar Sirius		LSSI 5030	LSSI 5025
		Forced air circulation	Forced air circulation
Version		EWU/EEU	GEWU/GEEU Glass door
Temperature range	°C :	-10/-30	-10/-23
Content	litres (gross) :	515	523
Content	litres (net) :	348	354

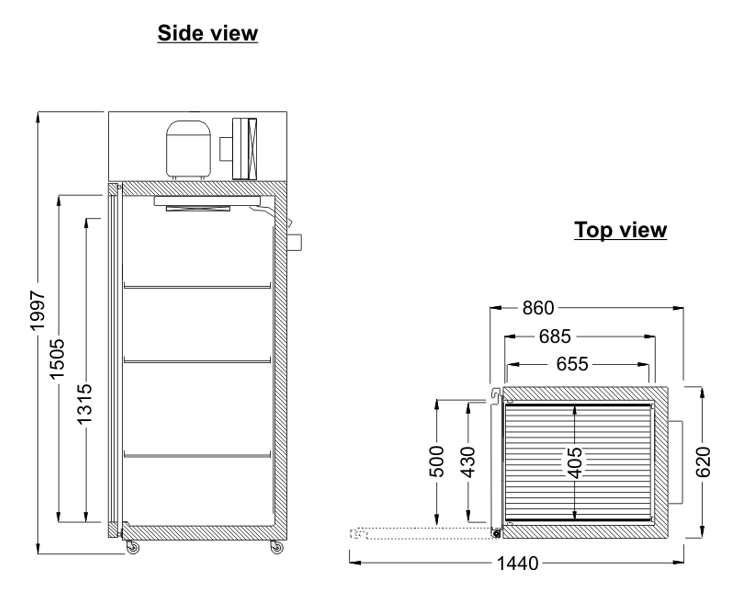

Ext. dimensions (W×D×H)	mm :	620 × 860 × 1997	620 × 860 × 1997
Int. dimensions (W×D×H)	mm :	500 × 685 × 1505	500 × 695 × 1505
Depth with door opened	mm :	1440	1440
Weight	kg :	114	114
Mains connection	:	1/N/PE~230 V 50 Hz - 60 Hz	1/N/PE~230 V 50 Hz - 60 Hz
Grid inserts	:	5	5
Shipping dimensions (W×D×H)	mm :	700 × 880 × 2200	700 × 880 × 2200
Shipping weight	kg :	125	125
Refrigerant CFC- and HCFC-free	:	R404A	R404A

LabStar Sirius + Accessories	Outside / Inside	Cat. No.
LabStar Sirius LSSI 5030EWU	white / CNS	GSLSSI5030EWU
LabStar Sirius LSSI 5030EEU	CNS / CNS	GSLSSI5030EEU
LabStar Sirius LSSI 5025GEWU	white, glass door / CNS	GSLSSI5025GEWU
LabStar Sirius LSSI 5025GEEU	CNS, glass door / CNS	GSLSSI5025GEEU

Additional options and accessories on ⇒ request

LabStar Sirius + Accessories	Cat. No.
ProfiTec temperature monitoring and recording system	GPTEC4A
ProfiCaller telephone dialler	on request
Pt100 temperature sensor, add. installed for ext. temperature recording	ZXX2-020-2L
Grid inserts, 430x655 mm (BxT)	ZLSSI4-430x655
Guide rails for grid inserts, 1 Pair	ZLSSI1-024
Drawer with telescopic slide-out for LSSI 50xx, made of CNS	ZLSSI4-001
Interior socket, tropical design	ZLSSI1-001-01
Feet instead of castors made of CNS, 50 mm height adjustable	ZLSSI5-021-125
Duct to storage compartment 26 mm in diameter	ZLSSI1-002-26
Door hinges factory-mounted on left	ZLSSI5-001
MIN/MAX thermometer to be placed in refrigerators or freezers,	ZXX2-019-001
measuring range -50/+50 °C, no additional temperature sensor required
MIN/MAX digital thermometer, hand-held unit with digital display as well as	ZXX2-019-011
data-hold and relative measuring function, measuring range -200/+1370 °C
(An additional temperature sensor is required, eg. Cat. No. ZXX2-022-100.)
Temperature sensor for MIN/MAX thermometer ZXX2-019-011,	ZXX2-022-100
measuring range -100/+1000 °C, length 2 m, other ranges on request

Inventory Systems

Stainless steel drawers,
freezer cassettes and grid
inserts enable specimens to be stored and retrieved in a clear and orderly manner.
Optimum use is made of
the storage capacity.

⇒ Recommendations
for additional storage
sets can be found
in our separate
catalogue.

⇒ Please ask
for a personal
fitting option.

⇒ www.kryobox.de

⇐ prev.: LabStar Sirius

⇑ Overview: Laboratory Upright Freezers

LabStar Sirius: next ⇒
