Path : Chest Freezers / Chest Freezer ProfiLine Ultimus PLULC..

⇑ Overview: Chest Freezers

Chest Freezer ProfiLine Ultimus

Static cooling and manual defrost
(forced air circulation optional)
Micro-processor driven temperature controller
with digital display and password protection
- Visual/audible alarm device, mains-independent
- Alarm warning for excess and sufficient temperature
- Power failure alarm
- Probe failure alarm
- Condenser failure alarm
- Low battery alarm
- Lid open alarm
- No-volt remote alarm contact for connection to an alarm system on the premises
External housing made of white, galvanized steel plate
Lockable lid and spring-loaded hinges to allow opening at any angle
Interior made of stainless steel (CNS)
Inner lids
4 swivel castors

Fig.r.: ProfiLine Ultimus PLULC33501

Model ProfiLine Ultimus		PLULC17501EWN	PLULC33501EWN	PLULC48501EWN
Temperature range	°C :	-35 / -50	-35 / -50	-35 / -50
Content	litres (gross) :	170	330	480
Ext. dimensions (W×D×H)	mm :	900 × 1000 × 1240	1500 × 860 × 1240	1950 × 880 × 1120
Int. dimensions (W×D×H)	mm :	630 × 490* × 550	1240 × 490* × 550	1220 × 520* × 750
Height at lid opened	mm :	2125	1990	1900
Weight	kg :	110	270	320
Mains connection	:	1/N/PE~230 V 50 Hz	1/N/PE~230 V 50 Hz	1/N/PE~230 V 50 Hz
Shipping dimensions	mm :	1100 × 1070 × 1730**	1700 × 930 × 1730**	2150 × 950 × 1610**
Refrigerant	:	R404A	R404A	R404A

* Internal depth minus 50 mm when installing the forced air circulation

** Information for delivery in wooden case (optional)

ProfiLine Ultimus chest freezers can be manufactured according to customers' requirements. Temperatures down to -85 °C are possible.

ProfiLine Ultimus + Accessories	Cat. No.
ProfiLine Ultimus PLULC17501EWN	GTPLUC17501EWN
ProfiLine Ultimus PLULC33501EWN	GTPLUC33501EWN
ProfiLine Ultimus PLULC48501EWN	GTPLUC48501EWN

ProfiTec temperature monitoring and recording system	GPTEC4A
ProfiCaller telephone dialler	on request
Pt100 temperature sensor,	ZXX2-020-2L
additional installed for external temperature recording
Forced air circulation	ZPLUL9-001
Duct to storage compartment 28 mm in diameter	ZPLUL1-001
Water-cooled version (water-cooled condenser)	on request
MIN/MAX digital thermometer, hand-held unit with digital display	ZXX2-019-011
as well as data-hold and relative measuring function,
measuring range -200/+1370 °C
(An additional temperature sensor is required, eg. Cat. No. ZXX2-022-100.)
Temperature sensor for MIN/MAX thermometer ZXX2-019-011,	ZXX2-022-100
measuring range -100/+1000 °C, length 2 m,
other ranges on request

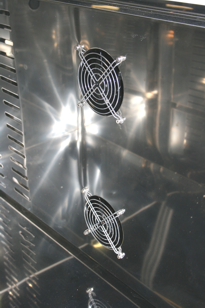

Option "Forced air circulation"

Download Data sheet

Inventory Systems

Stainless steel vertical racks,
freezer cassettes and grid
inserts enable specimens to be stored and retrieved in a clear and orderly manner.
Optimum use is made of
the storage capacity.

Recommendations
for additional storage
sets can be found
in our separate
catalogue.

Please ask
for a personal
fitting option.
