Path : Bloodbank +4 °C Refrigerator LabStar Sanguis / LabStar Sanguis LSSA

⇑ Overview: Bloodbank +4 °C Refrigerator LabStar Sanguis

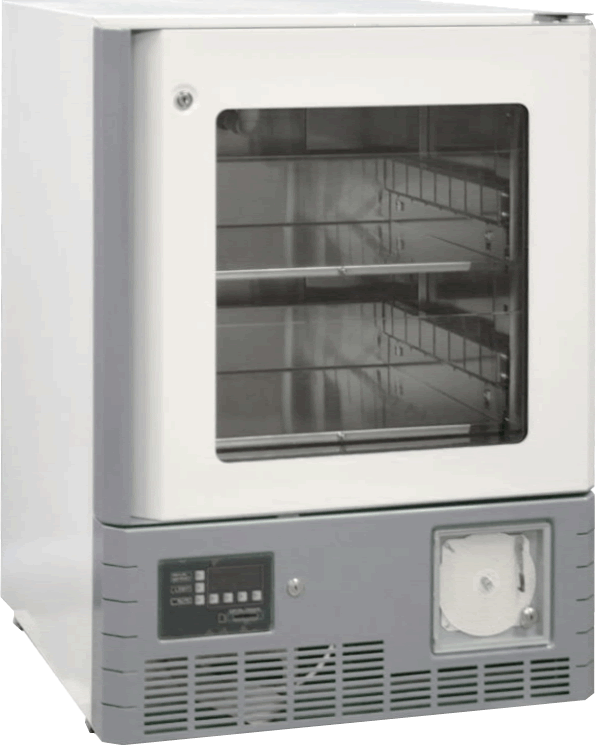

Bloodbank Refrigerator LabStar Sanguis LSSA

Forced air circulation , automatic defrost and condensate evaporation
Micro-processor driven temperature controller
- Visual/audible alarm device, mains-independent
- Alarm warning for excess and insufficient temperature
- Power failure alarm
- Probe failure alarm
- Door alarm
- Integrated data logger
- USB port for data download
- Circular chart recorder for 7 days
- No-volt remote alarm contact for
connection to a remote alarm system
External housing made of white corrosion-resistant, galvanized steel plate with PVC finish
Self-closing and lockable door
Door hinges on right, changeable
Door seal changeable
2 drawers with telescopic slide-out
Interior made of stainless steel CNS
Interior lighting
4 castors, 2 height adjustable feet at rear

Abb.r.: LabStar Sanguis LSSA1004GEWU

Modell LabStar Sanguis		LSSA1004GEWU
Temperature range	°C :	+2/+6
Content	Liter netto :	100
Ext. dimensions (WxDxH)	mm :	600x600x850
Int. dimensions (WxDxH)	mm :	475x440x460
Depth with door opened	mm :	1135
Drawers	:	2
Number of blood bags à 450 ml	:	64
Weight	kg :	80
Mains connection	:	1/N/PE~230 V 50 Hz
Shipping dimensions (WxDxH)	mm :	680x680x1050
Shipping weight	kg :	91
Refrigerant CFC- and HCFC-free	:	R134a

Modell	Außen/Innen	Art.-Nr.
LabStar Sanguis LSSA1004GEWU	weiß, Glastür / CNS	GSLSSA1004GEWU

Additional options and accessories on ⇒ request

LabStar Sanguis + Accessories Outside / Inside	Cat. No.
LabStar Sanguis LSSA1104GEWU white, glass door / CNS	GSLSSA1104GEWU
ProfiTec Temperature Monitoring and Recording System (see sep. brochure).	GPTEC4A
ProfiCaller telephone dialler (see sep. brochure).	on request
Pt-100 temperature sensor, add. installed for ext. temperature recording.	ZXX2-020-2L
SMS alarm (to 5 mobile numbers maximum).	on request
7-day circular charts. Pck. of 100 pieces.	on request
Internal dividers for drawer. 1 set consisting of 3 dividers.	ZLSSA4-010
MIN/MAX thermometer to be placed in refrigerators or freezers.	ZXX2-019-001
Measuring range -50/+50 °C, an add. temperature sensor is not required. MIN/MAX digital thermometer. Hand-held unit with digital display as well as	ZXX2-019-011
data-hold and relative measuring function. Measuring range -200/+1370 °C. An add. temperature sensor is required, eg. Cat.-No. ZXX2-022-100. Temperature sensor for MIN/MAX thermometer ZXX2-019-011.	ZXX2-022-100
Measuring range -100/+1000 °C. Length 2 m. Other ranges on request. Export version with special voltages / frequencies.	on request

Temperature Monitoring

ProfiTec
intelligent temperature monitoring and recording system

• For up to 4 refrigerators
and/or freezers
• Readings are stored over
a period up to 781 days
• Warning for excess and
insufficient temperature
• Includes no-volt remote
alarm contact
• The measuring protocol
can be fed to PC via
RS-232 port

⇒ to description

Download Data sheet


Inventory Systems Stainless steel drawers, freezer cassettes and grid inserts enable specimens to be stored and retrieved in a clear and orderly manner. Optimum use is made of the storage capacity. Recommendations for additional storage sets can be found in our separate catalogue. Please ask for a personal fitting option.	MIN/MAX Thermometer MIN/MAX digital thermometer with add. temperature sensor Art.Nr. ZXX2-019-011, Art.Nr. ZXX2-022-100
