Path :  Laboratory Upright Freezers / LabMed LM
  ⇑ Overview: Laboratory Upright Freezers

Laboratory Upright Freezer LabMed LM0522WN and LM6025WN

  • LabMed LM0522 WN :
  • Static cooling and manual defrost
  • Analogue thermostat
  • External housing made of white, galvanized steel plate
  • Interior made of white ABS plastic
  • 4 litres freezer compartment
  • 1 plastic-plated grid insert
  • 2 feet for height adjustment at front
  • LabMedLM6025WN :
  • Static cooling and manual defrost
  • Operating panel with main switch
    - Analogue thermostat and digital display (LED)
    - visual alarm device
  • Lockable door, door hinges on right, changeable
  • Door seal changeable
  • External housing and interior made of white, galvanized steel plate
  • 5 plastic-plated grid inserts, height adjustable
  • 4 castors, 2 feet for height adjustment at front

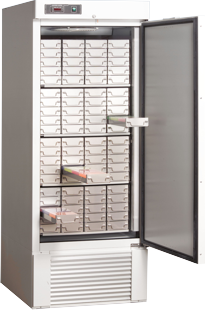

Fig.r.: LabMed LM 6025WN

Model LabMed LM   LM 0522WN LM 6025WN
Temperature range °C : -16/-24 -12/-25
Content litres (gross) : 40 618
Ext. dimensions (W×D×H) mm : 475 × 450 × 522 670 × 870 × 1960
Depth with door opened mm : 895 1510
Weight kg : 18 130
Mains connection  : 1/N/PE~230 V 50 Hz 1/N/PE~230 V 50 Hz
Refrigerant   : R600a R404A



LabMed + Accessories Cat. No.
LabMed LM 0522WN GSLM0522WN
LabMed LM 6025WN GSLM6025WN



Additional options and accessories on  ⇒  request

LabMed LM 0522N



LabMed LM + Accessories Cat. No.
Alarm unit visual/audible, electronic control and digital display ZLM2-005+110/-50
with no-volt remote contact (LM6025WN only)
No-volt remote alarm contact for connection ZXX2-070+10/-30
to a remote alarm system
Digital temperature display incl. PTC temperature sensor, ZXX2-015-001
measuring range +50/-50 °C (LM0522 only)
ProfiTec temperature monitoring and recording system GPTEC4A
ProfiCaller telephone dialler on request
Pt100 temperature sensor, additional installed for ZXX2-020-2L
external temperature recording
MIN/MAX thermometer to be placed in refrigerators or freezers, ZXX2-019-001
measuring range -50/+50 °C,
no additional temperature sensor required
MIN/MAX digital thermometer, hand-held unit with digital display ZXX2-019-011
as well as Data-Hold and relative measuring function,
measuring range -200/+1370 °C
(An additional temperature sensor is required, eg. Cat. No. ZXX2-022-100.)
Temperature sensor for MIN/MAX thermometer ZXX2-019-011, ZXX2-022-100
measuring range -100/+1000 °C, length 2 m, other ranges on request
 Temperature Monitoring
ProfiTec
intelligent temperature monitoring and recording system
• For up to 4 refrigerators
   and/or freezers
• Readings are stored over
   a period up to 781 days
• Warning for excess and
   insufficient temperature
• Includes no-volt remote
   alarm contact
• The measuring protocol
   can be fed to PC via
   RS-232 port

Download Data sheet

PDF

 Inventory Systems
Stainless steel drawers,
freezer cassettes and grid
inserts enable specimens to be stored and retrieved in a clear and orderly manner.
Optimum use is made of
the storage capacity.





  ⇑ Overview: Laboratory Upright Freezers
