Path : Laboratory Upright Freezers / ProfiLine Pegasus PLPE 41..

⇑ Overview: Laboratory Upright Freezers

ProfiLine Pegasus: next ⇒

Laboratory Upright Freezer ProfiLine Pegasus PLPE42..EWN

Static cooling and manual defrost
Micro-processor driven temperature controller
with digital display and password protection
- Visual/audible alarm device, mains-independent
- Alarm warning for excess and
insufficient temperature
- Power failure alarm
- Probe failure alarm
- Door alarm
- Integrated data logger with USB port
- No-volt remote alarm contact for connection
to an alarm system on the premises
- RS 485 port
- Prepared for GSM alarm
Lockable door, door hinges on right, can
only be changed in factory
External housing made of white,galvanized steel plate
Interior made of stainless steel CNS
5 compartments with additional inner doors
Duct to storage compartment for external sensor
4 castors, 2 lockable

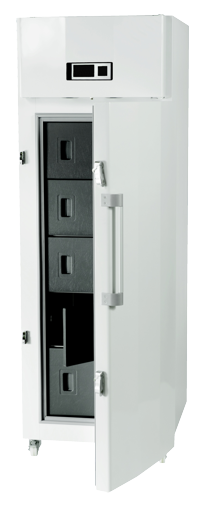

Fig.r.: ProfiLine Pegasus PLPE 4186

Model ProfiLine Pegasus		PLPE4240EWN	PLPE4286EWN
Temperature range	°C :	-20/-40	-40/-86
Content	litres (net)to :	393	393
Number of compressors	mm :	1	1
Ext.dimensions (WxDxH)	mm :	720 × 885 × 1990	720 × 885 × 1990
Dim. compartment (WxDxH)	mm :	440 × 595 × 255	440 × 595 × 255
Depth with door opened	mm :	1475	1475
Weight	kg :	175	175
Mains connection	:	1/N/PE~230 V 50-60 Hz	1/N/PE~230 V 50-60 Hz
Shipping dim. (WxDxH)*	:	840 × 1040 × 2310*	840 × 1040 × 2310*
Shipping weight	mm :	244*	244*
Refrigerant CFC- and HCFC-free	kg :	R290	EP88

* Shipping in a wooden box

ProfiLine Pegasus + Accessories	Cat. No.
ProfiLine Pegasus PLPE4240EWN	GSPLPE4240EWN
ProfiLine Pegasus PLPE4286EWN	GSPLPE4286EWN
ProfiTec temperature monitoring and recording system	GPTEC4A
ProfiCaller telephone dialler	on request
Pt100 temperature sensor, add. installed for ext. temperature recording	ZXX2-020-2L
Circular chart recorder for 7 days.	on request
6“ 7-day circular charts. Pck. of 100 pieces.	on request
CO2 back-up system, free-standing.	ZXX2-093
Facilities for customer connection of CO2 back-up system.	ZPLPE2-094
MIN/MAX digital thermometer. Hand-held unit with digital display as well as	ZXX2-019-011
data-hold and relative measuring function. Measuring range -200/+1370 °C.
An add. temperature sensor is required, eg. Cat.-No. ZXX2-022-100.
Temperature sensor for MIN/MAX thermometer ZXX2-019-011.	ZXX2-022-100
Measuring range -100/+1000 °C. Length 2 m. Other ranges on request.

Temperature Monitoring

ProfiTec
intelligent temperature monitoring and recording system

• For up to 4 refrigerators
and/or freezers
• Readings are stored over
a period up to 781 days
• Warning for excess and
insufficient temperature
• Includes no-volt remote
alarm contact
• The measuring protocol
can be fed to PC via
RS-232 port

⇒ to description

Download Data sheet

⇒ www.kryobox.de
