Laboratory Upright Freezer ProfiLine Pegasus PLPE62..EWN

Static cooling and manual defrost
2 separate, redundant operating cooling circuits
for maximum safety (PLPE6290EWN only)
Microprocessor driven temperature controller with digital display
and password protection
- Visual/audible alarm device, mains-independent
- Alarm warning for excess and sufficient temperature
- Power failure alarm
- Probe alarm
- Door alarm
- Integrated data logger with USB port
- No-volt remote alarm contact for connection to a remote alarm system
on the premises
- RS-485 port
- Prepared for GSM alarm
Lockable door, door hinges on right, can only be changed in factory
External housing made of white, galvanized steel plate
Interior made of stainless steel (CNS)
5 compartments with additional inner doors
4 castors, 2 lockable

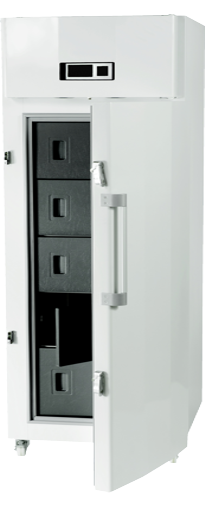

Fig.r.: ProfiLine Pegasus PLPE 4186

Model ProfiLine Pegasus		PLPE6240EWN	PLPE6290EWN
Temperature range	°C :	-20/-40	-40/-90
Content	litres (net)to :	556	556
Ext. dimensions (W×D×H)	mm :	920 × 885 × 1990	920 × 880 × 1990
Int. dimensions of the 4 upper comp. (W×D×H)	mm :	640 × 595 × 255	640 × 595 × 255
Int. dimensions of the lowest comp. (W×D×H)	mm :	640 × 595 × 255	640 × 595 × 255
Depth with door opened	mm :	1675	1675
Weight	kg :	215	242
Mains connection	:	1/N/PE~230 V 50-60 Hz	1/N/PE~230 V 50-60 Hz
Refrigerant	:	R290	EP88
Shipping dimensions (W×D×H)	mm :	1040 × 1040 × 2310*	1040 × 1070 × 2310*
Shipping weight	kg :	340*	342*

* Shipping in a wooden box

ProfiLine Pegasus + Accessories	Cat. No.
ProfiLine Pegasus PLPE6240EWN	GSPLPE6240EWN
ProfiLIne Pegasus PLPE6290EWN	GSPLPE6290EWN
ProfiTec temperature monitoring and recording system	GPTEC4A
ProfiCaller telephone dialler	on request
Pt100 temperature sensor, add. installed for ext. temperature recording	ZXX2-020-2L
CO2 back-up system, free-standing	ZXX2-093
Facilities for customer connection of CO2 back-up system	ZPLPE2-094
MIN/MAX thermometer to be placed in refrigerators or freezers,	ZXX2-019-001
measuring range -50/+50 °C, no additional temperature sensor required
MIN/MAX digital thermometer, hand-held unit with digital display as well	ZXX2-019-011
as Data-Hold and relative measuring function.
measuring range -200/+1370 °C.
(An additional temperature sensor is required, eg. Cat. No. ZXX2-022-100.)
Temperature sensor for MIN/MAX thermometer ZXX2-019-011,	ZXX2-022-100
measuring range -100/+1000 °C, length 2 m, other ranges on request

Temperature Monitoring

ProfiTec
intelligent temperature monitoring and recording system

• For up to 4 refrigerators
and/or freezers
• Readings are stored over
a period up to 781 days
• Warning for excess and
insufficient temperature
• Includes no-volt remote
alarm contact
• The measuring protocol
can be fed to PC via
RS-232 port

⇒ to description

Download Data sheet

⇒ www.kryobox.de
